KP806

KP806

 3″ Thermal POS Printer for Kitchen

 Patent Cutter Technology

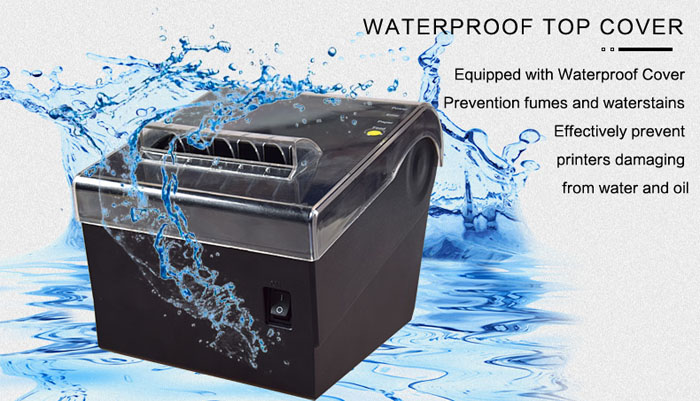

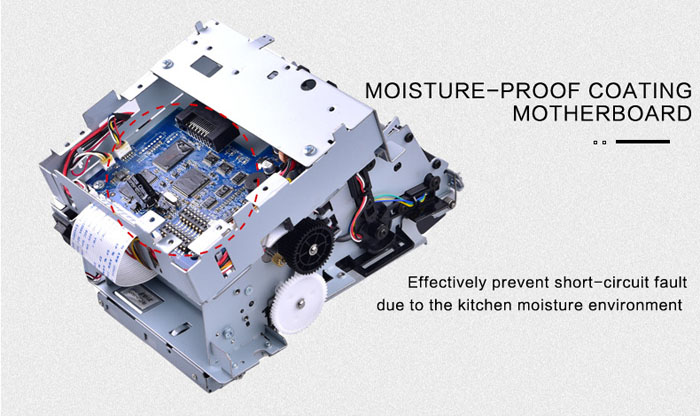

Prevents Fumes,Water and Dust
Unique Error Reprint Technology

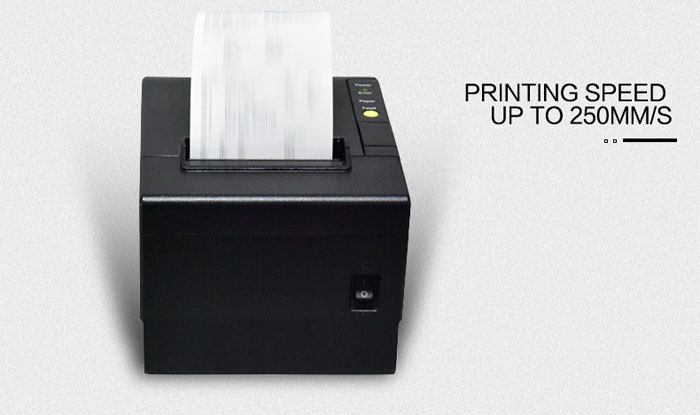

250mm/s High Printing Speed



Inquiry



Category:

Description

PrintingPrint MethodDirect Thermal Line Printing
ResolutionStandard 203dpi(8dots/mm)
Print Speed200~250mm/s
Printing Width72mm/48mm

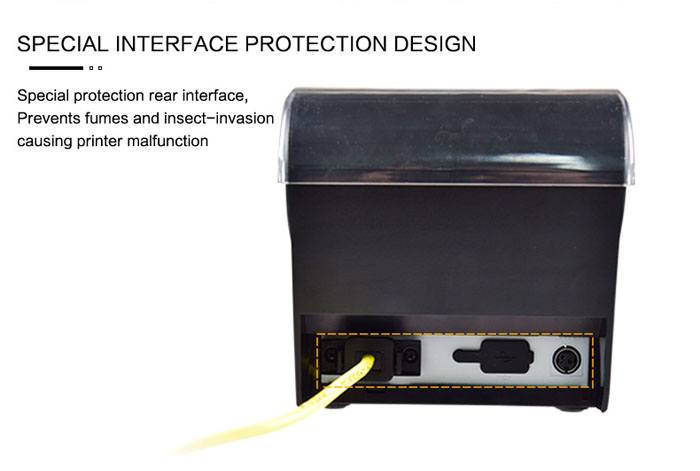

InterfaceUSB/Ethernet
Page ModeSupport
MemoryRAM8Mb
Flash16Mb
FontsChineseGBK1830 24x24dots
AlphanumericASCII 9×17, 12x24dots
User-definedYES
Codepage47
Barcode1DUPC-A, UPC-E, EAN8, EAN13, CODE39, ITF, CODEBAR, CODE128, CODE93
2DPDF417, QR code
GraphicsSupport bitmap printing with different density and user defined bitmap printing. (Max size of each bitmap is 40K, the total size of bitmap is 256k)
DetectionDefaultPaper near end sensors,cutter jam detection, cover open switch
LED IndicatorPower LEDGreen LED
Paper LEDRed LED
Error LEDRed LED
Power SupplyInputAC 100V-240V 50-60HZ
OutputDC 24V/2.5A
PaperPaper TypeThermal Receipt Paper
Paper Width58mm/80mm
Paper Thickness0.056~0.1mm
Roll Paper DiameterMax. OD §Φ83mm
Paper LoadEasy paper loading
Paper CutPartial cut or full cut
Physical CharacteristicsOperating0°C~45°C, 20%~85%RH
Storage-40°C~60°C, 5%~95%RH

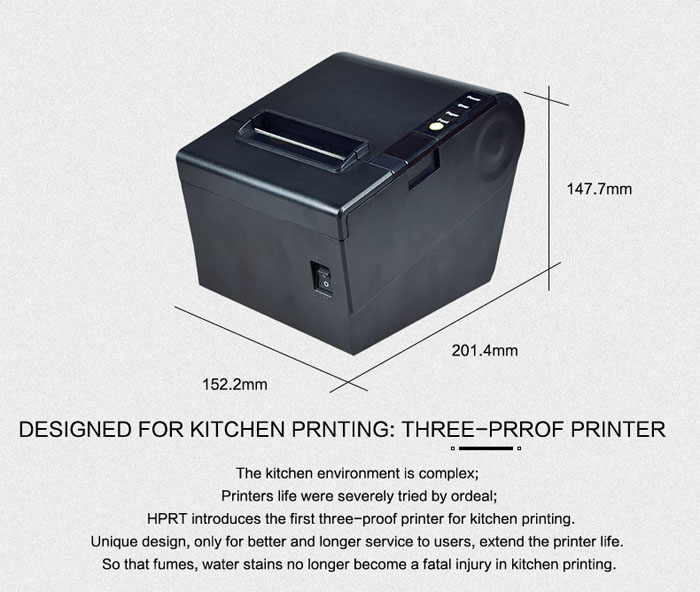

Dimensions201.4(L)x152.2(W)x147.7(H)mm
Weight1.8KG
ReliabilityTPH life150km
Cutter2 million cuts
Motor life360,000 hrs
SoftwareDriverWindows XP/7/8/10/POSReady /Linux /OPOS /JavaPOS
SDKWinCE, Win Mobile, Android, IOS

Driver

CategoryDescriptionVersionDownload

Windows Driver

XP/7/8/101.2.0.0Download
