HLP106D

HLP106D

3″ Thermal POS Printer

 Thermal transfer technology

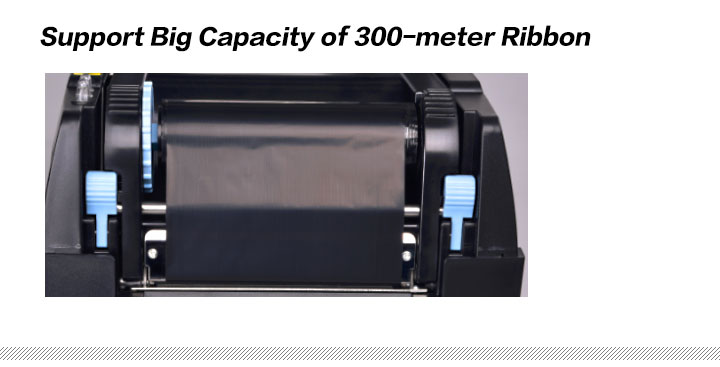

Big capacity ribbon
Low printing noise

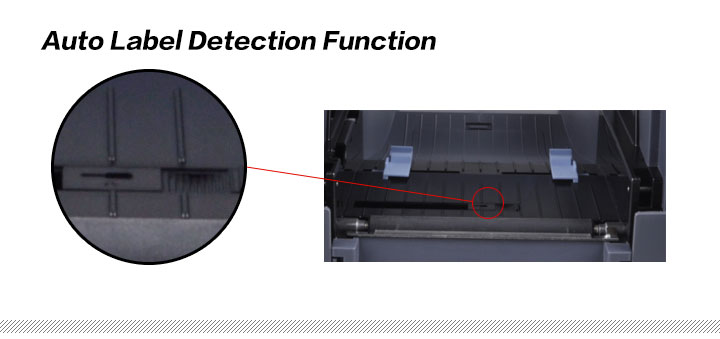

Auto label detection



Inquiry



Category:

Description

Features

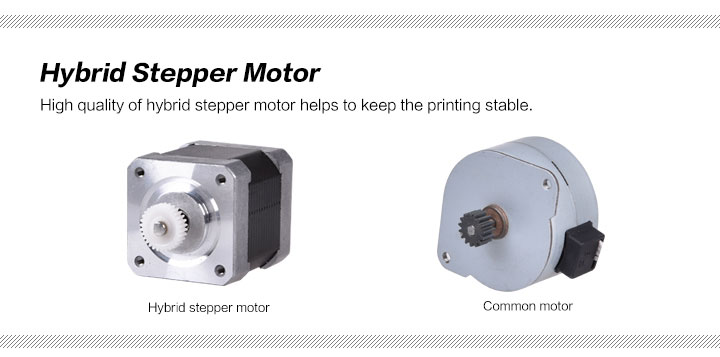

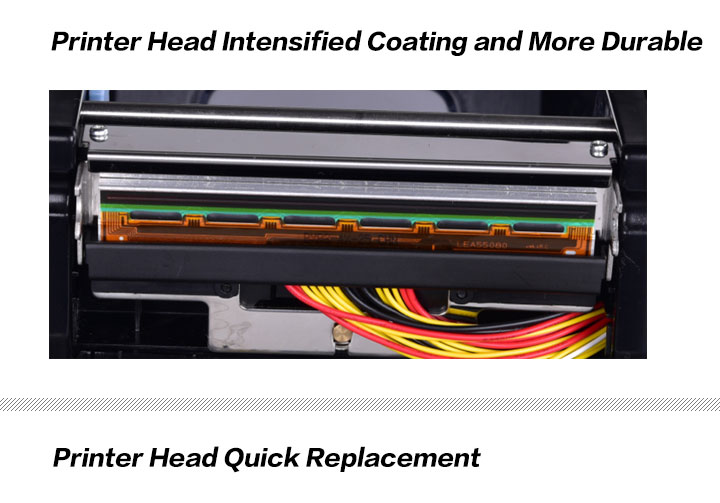

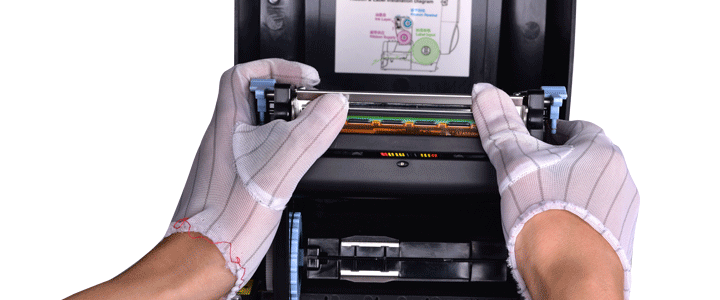

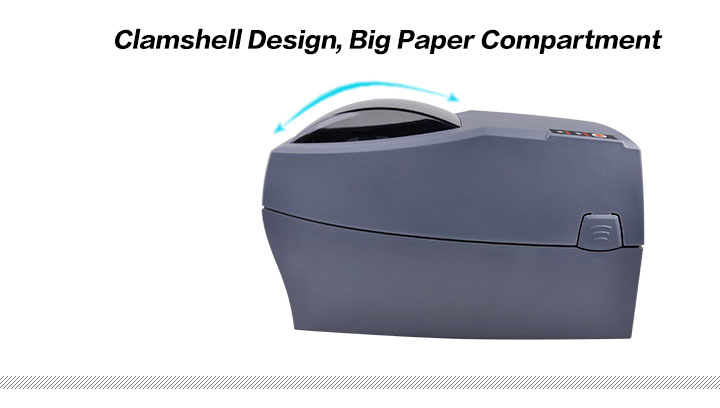

HLP106D Label Printer Features300 Meter RibbonBig Paper CompartmentAuto Label Detection FunctionLow Printing NoisePrinter HeadPrinter Head Quick ReplacementHybrid Stepper MotorOne Button and Two Led IndicatorsDriverExternal Label Roll HolderPrinter and Accessories

Specification

PrintingPrinting MethodThermal transfer/Direct thermal
Resolution203dpi(8dots/mm)
Printing Speed4IPS Max.
Printing Width108mm Max.
Printing Length15mm – 300mm
Processor32 bit RISC CPU
MemoryRAM2MB
Flash2MB
DetectionSensorsAdjustable reflective sensor, Fixed transmissive sensor(Central aligned), Head-up sensor, Ribbon end sensor
MediaTypesRoll-fed or Fan-fed, Die-cut or Continuous label, Tag stock, Continuous receipt paper
Width0.79″(20mm) – 4.65″(118mm)
Thickness0.003″(80um) – 0.007″(180um)
Label Roll Diameter5″(127mm)
Core Diameter1″(25.4mm),1.5″(38mm),3″(76.2mm)
RibbonTypesWax, Wax/Resin, Resin
Width1.33″(33.8mm) – 4.33″(110mm)
Length984′(300m)
Core Diameter1″(25.4mm)
Programming LanguageTSPL Simulation
SoftwareLabel DesignHPRT Bartender UltraLite
DriverWindows 2000, XP, Vista, 7, 8, 10 by seagull
Resident FontsBitmap Fonts9×17, 14×24 full ASCII character set
Code PagesDOS437, 720, 737, 755, 775, 850, 852, 855, 856, 857, 858, 860, 862, 863, 864, 865, 866,  Windows 1250, 1251, 1252, 1253, 1254, 1255, 1256, 1257, 1258  ISO8859-1, -2, -3, -4, -5, -6, -8, -9, -15 DBCS 932 (JIS), 936(GBK), 949 (Koran), 950(BIG5)
Barcode1DCode 39, Code 93, Code 128UCC, Code 128 subset A, B, C, Codabar,  Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2 (5) digits add-on, MSI, PLESSEY, POSTNET,  RSS-Stacked, GS1 DataBar, Code 11
2DPDF417, Maxicode, DataMatrix, QR Code, Aztec
InterfacesStandard versionUSB
Optional versionUSB and Ethernet ports

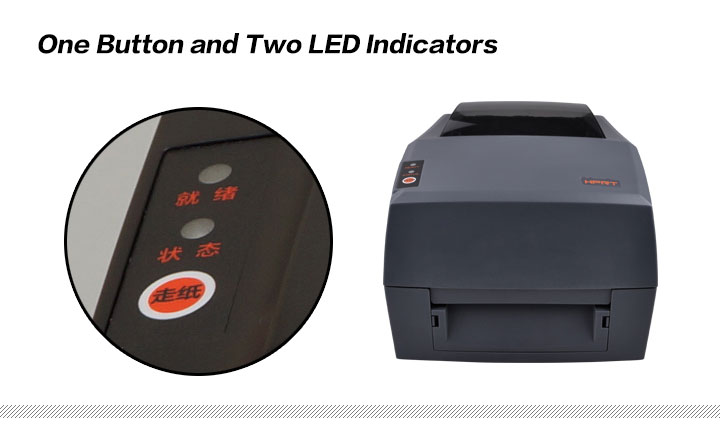

Control PanelTwo bi-color  LEDsfor Ready and Status indication, One Feed button
PowerAC/DC switching power adapter I/P: AC100-240V, 50/60Hz, O/P: DC 24V/2A, peak 5A
EnvironmentOperation41℉-104℉(5℃-40℃), 30%-85%, non-condensing
Storage-4℉-122℉(-20℃-50℃), 10%-90%, non-condensing

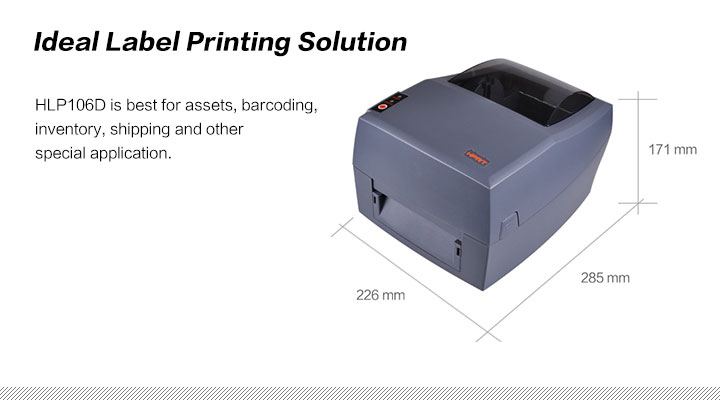

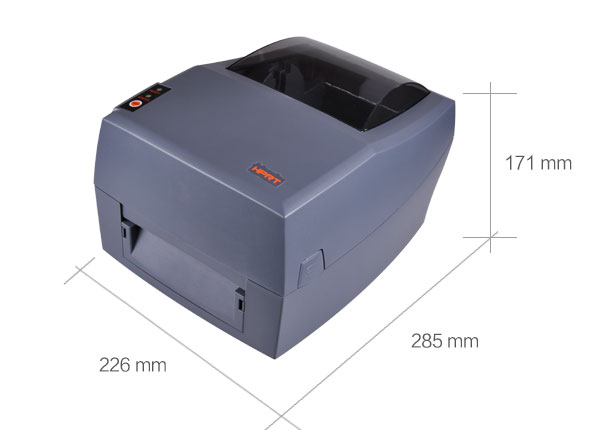

Physical CharacteristicsDimension(L*W*H)285(L)*226(W)*171(H)mm
Weight2.26kg, excluding consumables
Options & AccessoriesExternal label roll holder for 8″ (203mm) OD label rolls
Agency ApprovalsFCC, CE

Dimension

Download

Driver

CategoryDescriptionVersionDownload
Windows DriverXP/7/8/107.4.2_M-5Download

SDK

CategoryDescriptionVersionDownload
Android SDKTSPL0.0.9Download
iOS SDKTSPL1.5.4Download
Windows SDKTSPL1.0.0.5Download

Label Editor

CategoryDescriptionVersionDownload
Bartender UltraliteR3Download

Utility

CategoryDescriptionVersionDownload
Label Utility Tool2.0.0.2Download

Manual

CategoryDescriptionVersionDownload
User manual1.2Download
Programing manual1.1Download
BarTender Installation Manual1.0Download

Product Information

CategoryDescriptionVersionDownload
LeafletDownload
ImagesDownload
