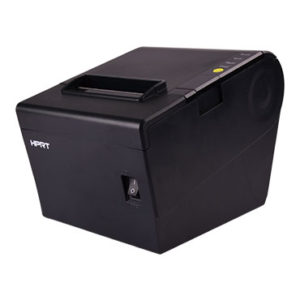

TP801

TP801

3″ Thermal POS Printer

Cutter jam auto-eliminating
300mm/s high printing speed
Front paper out design
Low printing noise
5 color LED indicators



Inquiry



Category:

Description

PrintingPrint MethodDirect Thermal Line Printing
ResolutionStandard 203dpi(8dots/mm), Emulated 180dpi(7dots/mm)
Print SpeedMax. 300mm/s
Printing Width48mm/72mm
InterfaceStandardUSB
OptionalSerial, Ethernet, Parallel, Serial+Ethernet, Bluetooth orWi-Fi
Page ModeSupport
MemoryRAM16Mb
Flash32Mb
FontsChineseGBK 24x24dots
AlphanumericASCII 9×17, 12x24dots
User-definedYES
Codepage48
Barcode1DUPC-A, UPC-E, EAN8, EAN13, CODE39, ITF, CODEBAR, CODE128, CODE93
2DPDF417, QR code
GraphicsSupport bitmap printing with different density and user defined bitmap printing. (Max size of each bitmap is 40K, the total size of bitmap is 256k)
DetectionDefaultPaper out, paper near end ,cutter jam detection, cover open switch
OptionalPaper taken sensor
LED IndicatorPower LEDGreen LED
Paper LEDBlue LED
Error LEDRed LED
Status LEDMulticolor LED
Power SupplyInputAC 100V-240V
OutputDC 24V/2A
PaperPaper TypeThermal Receipt Paper
Paper Width58mm/80mm
Paper Thickness0.056~0.09mm
Roll Paper DiameterMax. OD §Φ83mm
Paper LoadFront paper loading
paper cutpartial cut
Physical CharacteristicsOperating0°C~40°C, 20%~85%RH
Storage-20°C~70°C, 5%~95%RH
Dimensions190(L)x127(W)x126(H)mm
Weight1.58KG
Options AccessoriesUSB Cable, Serial Cable, Parallel Cable
ReliabilityTPH life150km
Cutter2 million cuts
SoftwareEmulationESC/POS
DriverWindows XP / Win7/Win8 /Win10 /POSReady /Linux /OPOS
SDKWinCE, Win Mobile, Android, IOS

Driver

CategoryDescriptionVersionDownload
Windows DriverXP/Vista/7/8/101.1.0.1Download
Linux Driver1.0.2Download
POSReady Driver1.0.5.2Download
OPOS Driver1.0.4.0Download

SDK

CategoryDescriptionVersionDownload
Android SDKESC0.0.7Download
iOS SDKESC1.5.3Download
Windows SDKESC1.0.1.7Download

Utility

CategoryDescriptionVersionDownload
Utility Tool1.2.3.15Download

Manual

CategoryDescriptionVersionDownload
User manual2.7Download
Programing manual1.6Download
software manual1.0Download

Product Information

CategoryDescriptionVersionDownload
LeafletDownload
ImagesDownload
