PPT2-A

PPT2-A

2″ Thermal POS Printer

 Compact and elegant design

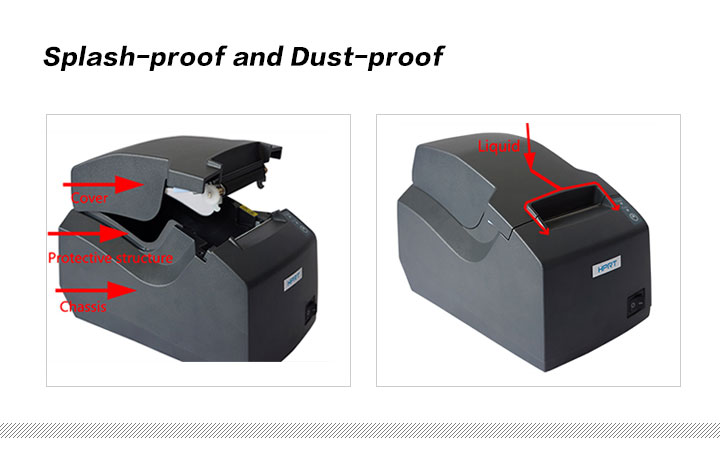

Anti-water splash, anti-dust design

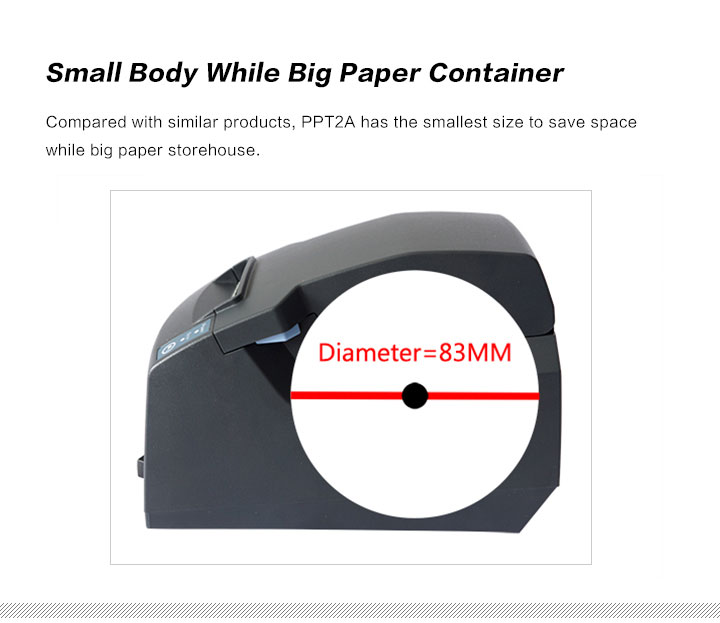

Fit big paper roll
Low power consumption



Inquiry



Category:

Description

PrintingPrinting MethodDirect Thermal Line Printing
Resolution203dpi(8dots/mm)
Printing SpeedMax.100mm/s
Valid Printing Width48mm
InterfaceUSB, RS-232, Parallel, Ethernet, Cashdrawer (Optional)
MemoryFlash16Mb
Resident FontsChineseGBK16x16,24x24dots
AlphanumericASCII 8×16, 12x24dots
User-definedYES
Codepage74
Barcode1DUPC-A, UPC-E, EAN8, EAN13, CODE39, ITF, CODEBAR, CODE128, CODE93
GraphicsSupport bitmap printing with different density and user defined bitmap printing (Max. 40K for per bitmap, and Max.64K for total)
DetectionSensorsPaper out detection
LED indicatorPower IndicatorRed
Error IndicatorBlue
Power SupplyInputAC100V-240V
OutputDC 12V/2A
PaperPaper TypeReceipt Paper
Paper Width58mm
Paper Thickness0.056~0.1mm
Paper Roller Diameter≤83mm

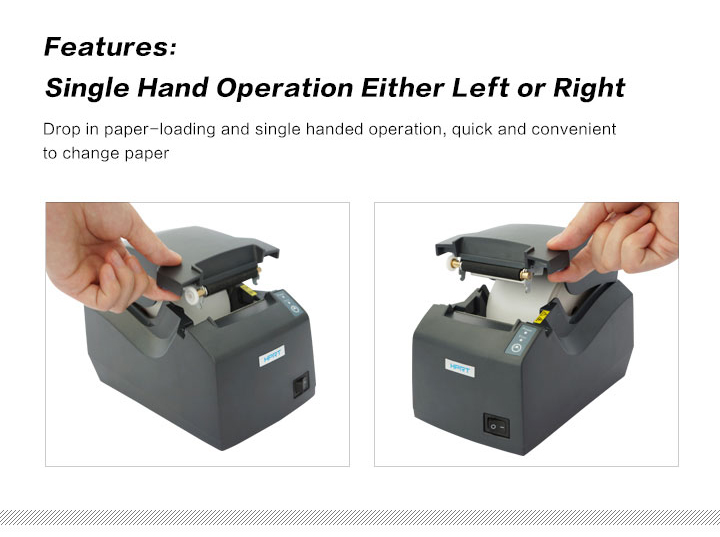

Paper LoadingEasy loading mechanism
Physical CharacteristicsWorking Condition-5°C~50°C , 25%~80%RH
Storage Condition-40°C~60°C, 5%~95%RH
Dimension186(L)*114(W)*128(H)mm
Weight1.06KG (Without paper roll)
AccessoriesUSB Cable, Serial Cable, Parallel Cable
SoftwareEmulationESC/POS
DriverWindows XP/Vista/Win7/Win8/Win10/PosReady/Linux/OPOS
SDKWinCE, Win Mobile, Android,iOS

DRIVER

CategoryDescriptionVersionDownload
Windows DriverXP/Vista/7/8/101.1.0.0Download
Linux Driver1.0.2Download
POSReady Driver1.0.5.2Download
OPOS Driver1.0.4.0Download

SDK

CategoryDescriptionVersionDownload
Android SDKESC0.0.7Download
iOS SDKESC1.5.3Download
Windows SDKESC1.0.1.7Download

Utility

CategoryDescriptionVersionDownload
Utility Tool1.2.3.4Download

Manual

CategoryDescriptionVersionDownload
Programing manualDownload
User manualDownload

PRODUCT INFORMATION

CategoryDescriptionVersionDownload
LeafletDownload
ImagesDownload
