Description

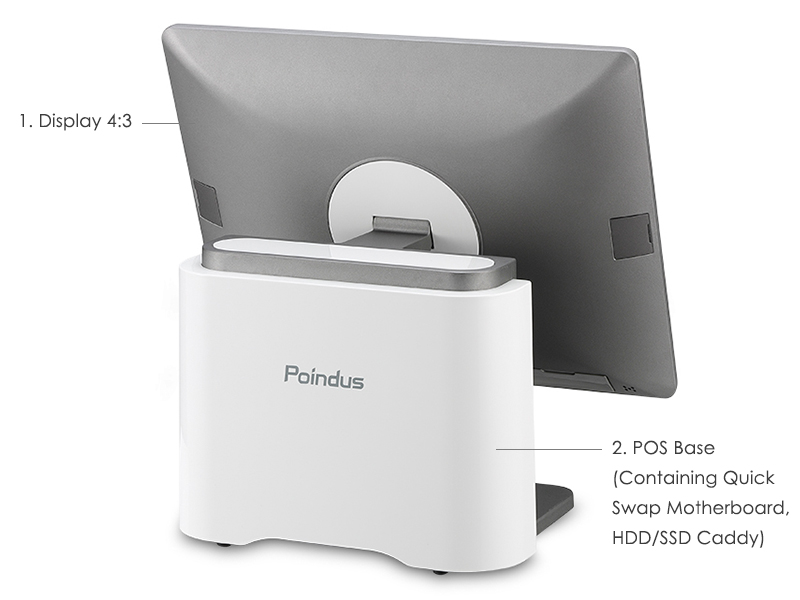

Modularized and Ultra Slim
Design 15” 4:3 Display
Following the Reddot Award Winning design of the VariPOS 210P the VariPOS 2 Series introduces a new aesthetic to POS terminals that fits with the retail brand image.

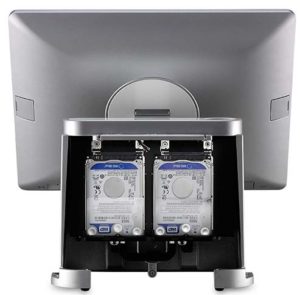

Robust Performance with Dual HDD Support for RAID Redundancy
Full Range of Intel® CPU for
Processor Intensive Retail Applications
Intel AMT & TPM
Technology
Intel® TPM protect system & data with hardware/software-based security hardening.
Full Range Intel Processors
Powered USB Connections
IP66
Spill Proof
Patented Double Hinged 2nd Display and Outstanding Extendibility with Companion Peripherals
The 10.1″ 2nd Display fits to the VariPOS 2 Series at either side of the POS base and is fitted with the new patented double hinge allowing for optimal positioning. The swivel arm with height and tilt adjustment brings a new level of flexibility pushing display limitations and connecting you directly with the customer. The dual mounting points allow flexible configuration with two simultaneously mounted devices (2nd Display, LCM or mPOS).
The VariPOS 2 Series introduces common peripherals that are compatible across the range. Cross compatibility allows System Integrators to reduce peripheral inventory and deploy peripherals to sites easily with no compatibility issues. The VariPOS 2 Series provides a full range of companion peripherals including LCM, MSR, iButton, Finger Print, RFID and 2nd Display.
Tangible Service Benefits with Quick Swap and Maintenance

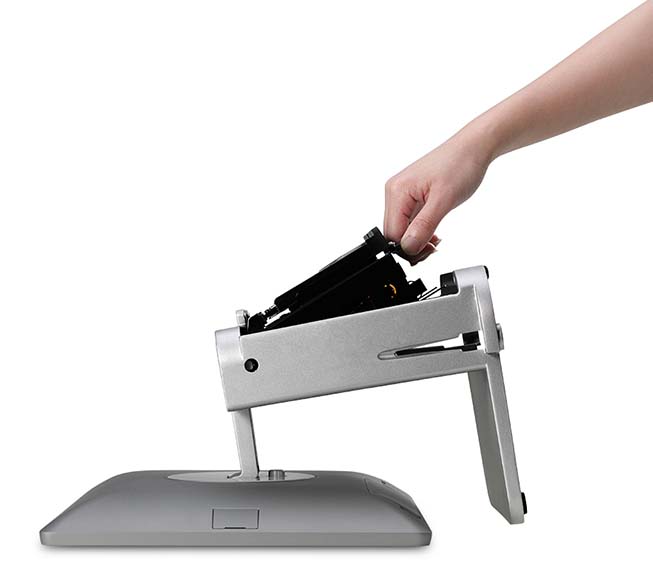

VariPOS 250 design provides quick and easy service for routine maintenance schedules, significantly reducing engineer onsite visit time. The modular design allows fast upgrade or replacement for motherboard/processor, display and SSD/HDD. The display can be easily detached from the base by thumb screw for rapid tool-less replacement. Simple Motherboard and SSD/HDD access has been implemented for easy maintenance with the quick service design
A proactive approach to servicing your technology will improve equipment effectiveness and increase lifespan; by simplifying the service process for System Integrators maintenance can be completed quickly and efficiently.
Specification
| VariPOS 250 | ||
| Model Name | ||
| VariPOS 250 (PE21) | VariPOS 250 (PE20) | |
| Main Board | ||
| Processor | Intel® Skylake Core™ i5-6500TE Processor | Intel® Celeron® Processor J1900 |
| Intel® Skylake Core™ i3-6100TE Processor | ||
| Intel® Skylake Celeron® G3900TE Processor | ||
| Chipset | Intel® Q170 | CPU Integrated |
| System Memory | 1 x SO-DIMM DDR4 slot, 4GB RAM as standard. Max. memory support up to 16GB. | 1 x SO-DIMM DDR3L slot, 4GB RAM as standard. Max. memory support up to 8GB |
| TPM | Intel F/W | N/A |
| Intel AMT | YES (i5 Only) | N/A |
| Storage | ||
| HDD/SSD | 2 x SATA III (2.5”) | 1 x SATA II (2.5”) |
| RAID Function | YES. Support RAID 0/1. | N/A |
| I/O & Expansion | ||
| DC Input | 1 x Mini Din 4P (DC +19V only) | |
| Cash Drawer | 1 x RJ-11 (Support DC +12V or +24V (default)) port supports 2 cash drawers | |
| LAN port | 1 x Intel Gigabit Ethernet | 1 x Gigabit Ethernet |
| USB port | 4 x USB 3.0 | 4 x USB 3.0 |
| 2 x USB 2.0 | 2 x USB 2.0 | |
| Powered USB Port (Option) | 2 x 12v Powered USB, max. 1.5A | N/A |
| 1 x 24v Powered USB, max. 1.85A | ||
| COM port | 3 x RS-232(COM1/2:DB-9, COM3:RJ-48) w/DC 0V/+5V/+12V, Selectable by BIOS (default setting is DC 0V) | |
| VGA port | 1 x DB-15 w/DC+12V. Power enables by BIOS setting (default is Disable) | |
| Bus Expansion | 1 x Mini-PCI-E Slot | |
| Power Switch | 1 x power on/off button | |
| Speaker | HD Audio, 2W Speaker x 2 | |
| OS Support | ||
| Win10 2016, Win8.1, Win7/POS Ready 7 | ||
| Power Adapter | ||
| External adapter, DC Model : Voltage:+19VDC, Std. 90watt. (Powered USB will use 180watt adaptor) | External adapter, DC Model : Voltage:+19VDC Std. 65watt | |
| Compliance | ||
| Certifications | CE, FCC, LVD, RoHS | CE, FCC, LVD, RoHS |
| Protection | IP 66 on front panel | IP 66 on front panel |
| Material | ||
| Main Unit: Die-Cast Aluminum | ||
| Color | ||
| Main Unit: Dark Silver / White | ||
| Dimension( Wx H x D mm) | ||
| 365.89 x 354.48 x 196.55 | ||
| Environmental Condition | ||
| Operating | 0ºC ~ 40ºC, 10% ~ 90% RH, non-condensing | |
| Storage | -20ºC ~ 60ºC, 10% ~ 90% RH, non-condensing | |
| Optional Accessories | ||
| 2nd Display | 10.1 ” Resolution 1280 x 800 (16:10 wide screen), USB Type, White color | |
| Customer Display (LCM) | 2×20 LCM, USB Type, White color | |
| MSR | ISO 3-Tracks Slim MSR, USB Type | |
| ibutton | Dallas Key Reader, USB Type | |
| RFID | 13.56Mhz, USB Type | |
| Fingerprint | DigitalPersona U.are.U 4500 Module, USB Type | |
| Scanner | 2D scanner, USB Type | |
| Carton | L460 x 300 x H510 mm | |
