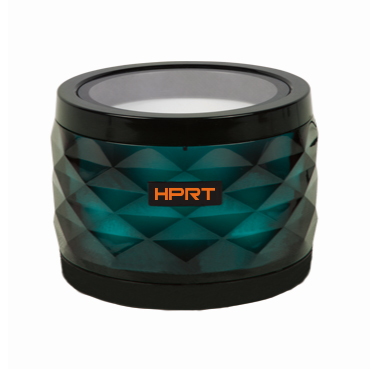

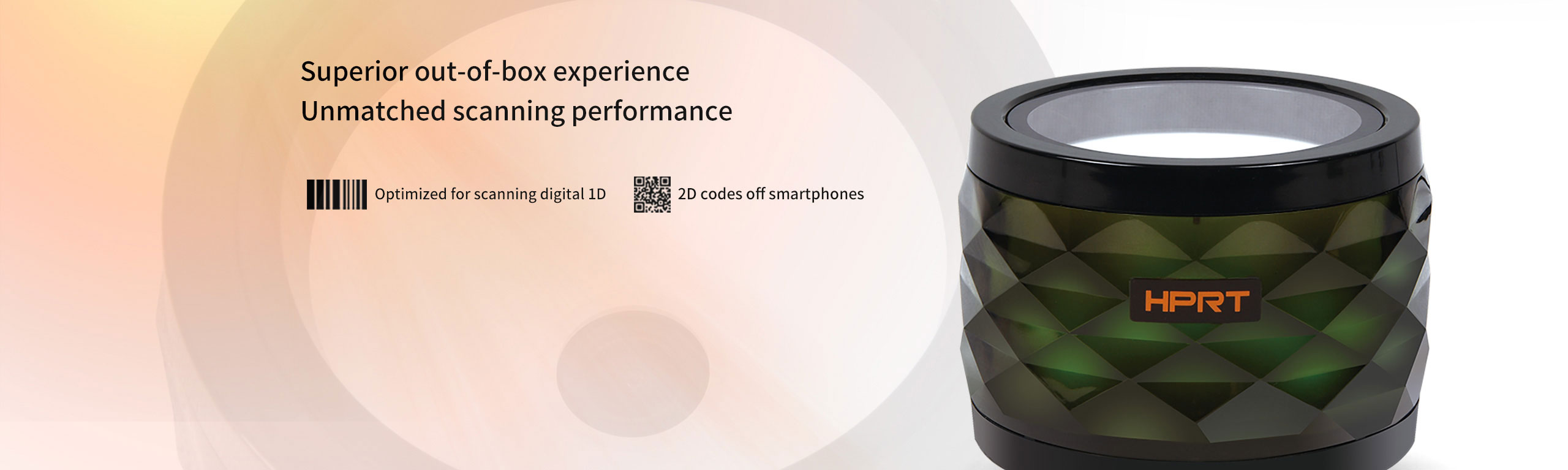

HPRT SCANNER P-100

2D Stationary Barcode Scanner

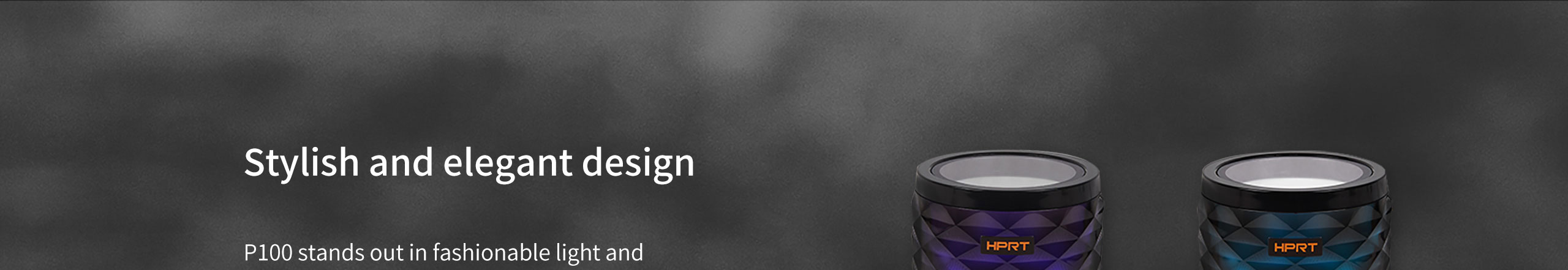

•  Fashionable design with colorful gradient light
•  Induction recognition
•  Ultra-large recognition window
•  Diffuse reflection fill light

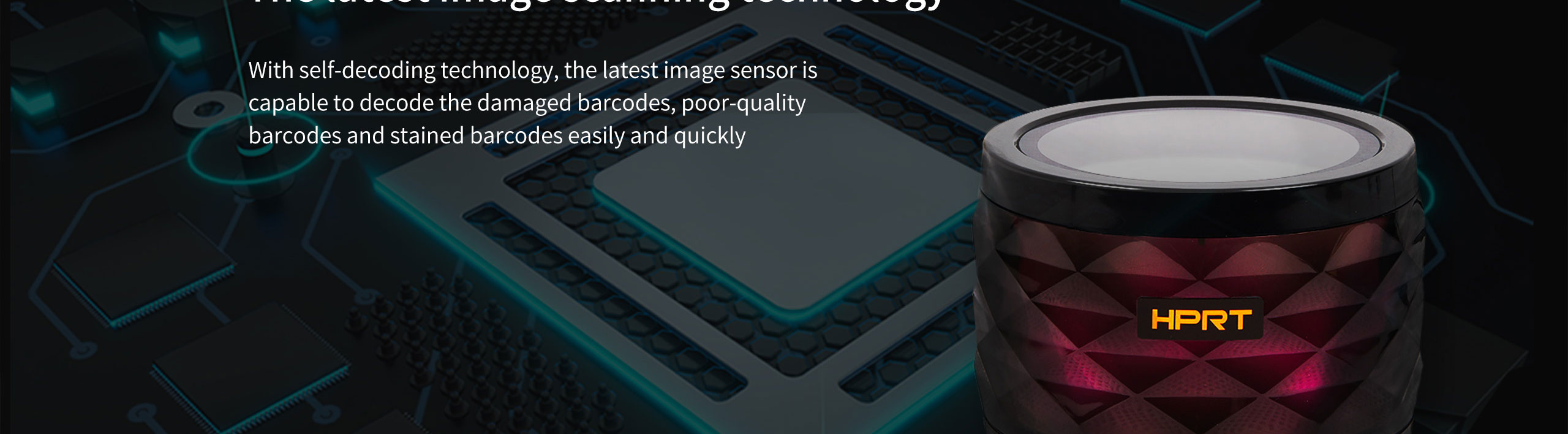

•  Independent R&D of core decoding technology

Category:

Description

Specification

S

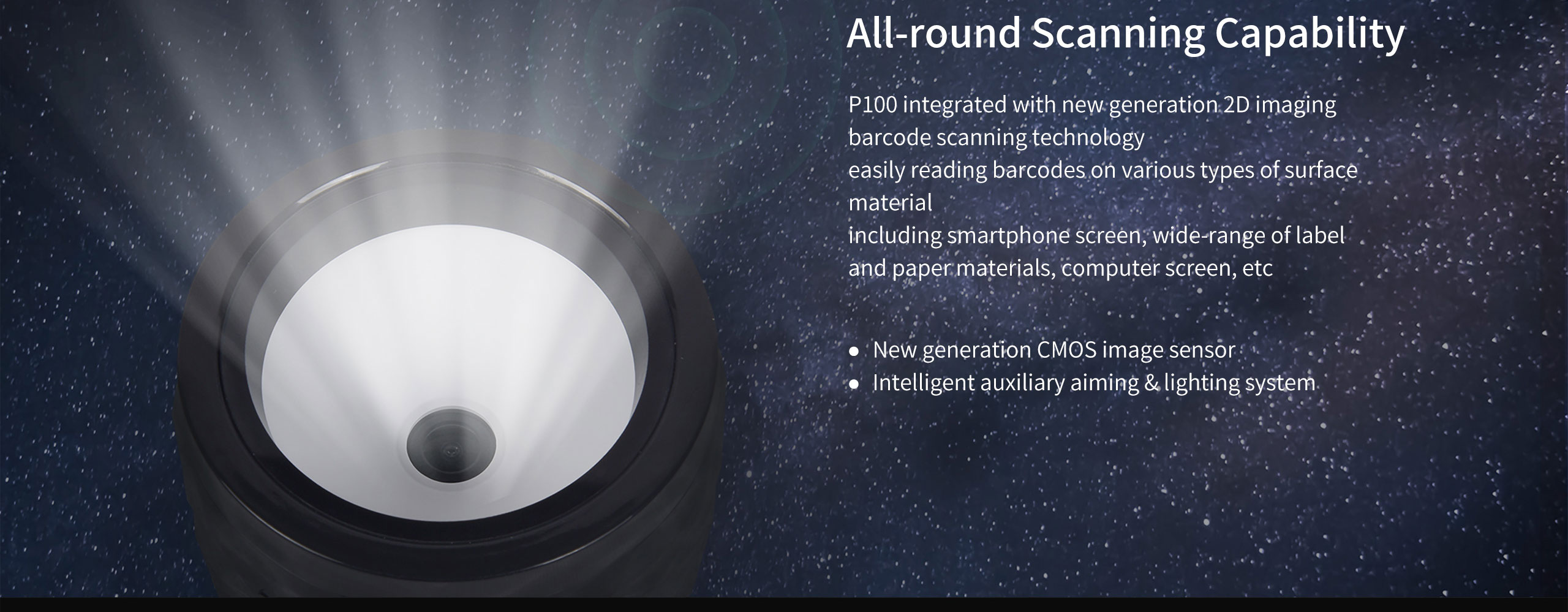

Scanning ParameterImage SensorCMOS
Pixel640 X 480
IlluminationWhite LED
Symbologies2D:PDF417, QR Code, Data Matrix, HanXin, Maxicode ,Postal Codes, etc.
1D:Code128, UCC/EAN-128, AIM128, EAN-8, EAN-13, ISBN/ISSN, UPC-E,UPC-A,Interleaved 2 of 5,ITF-6, ITF-4, Matrix 2 of 5,Industrial 25, Standard 25, Code39, Codabar, Code 93, Code 11, Plessey, MSI-Plessey, RSS-14、RSS-Limited、RSS-Expand, etc.
Resolution≥5mil
Typical DOF13mil ENA：0mm–55mm

20mil QR：0mm–50mm

Mobile payment code(5.5 inch screen)：0mm–120mm

Recognition SensitivityPitch±60º, Tilt360º, Skew±60º
FOVHorizontal: 67 °, Vertical: 52 °
Symbol Contrast≥20%
Physical ParameterDimension(mm)64（H）* 85（Φ）
Weight188g
NotificationBuzzer, LED Indicator
InterfacesUSB, USB virtual serial port
Trigger MethodInduction recognition,

Continuous recognition

Electrical ParameterOperating Voltage5VDC±5%
Operating CurrentStandby: 240mA,
Working: 290mA
Environment ParameterOperating Temperature-20 ℃~+50℃
Storage Temperature-40℃~+70℃
Relative Humidity5%~95%（No Condensation）
ESD±8 kV（Air discharge ）
±4 kV（Direct discharge）
Environment Luminosity0~100, 000LUX
CertificationCE FCC ROHS
Test ConditionEnvironment temperature: 23ºC
Environment illumination: 300LUX filament lamp
DOF depends on the resolution, contrast of the printing codebar, and the environment illumination
